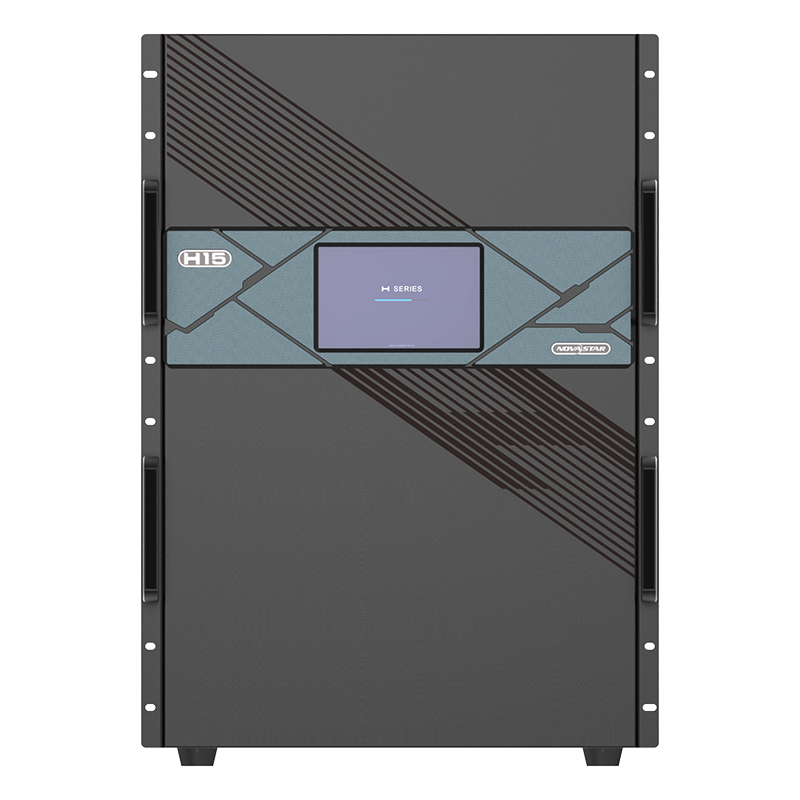

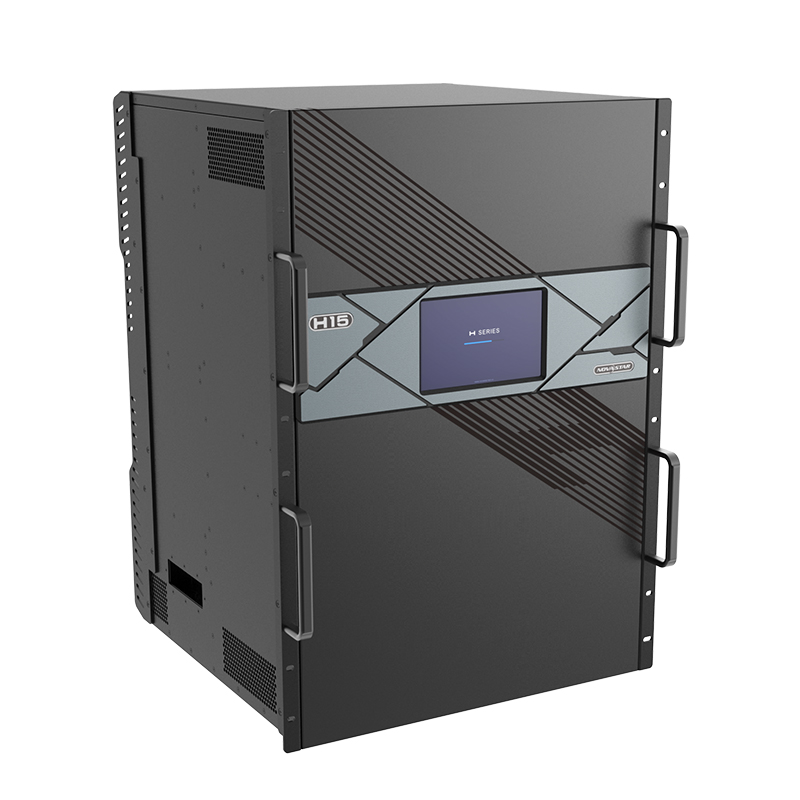

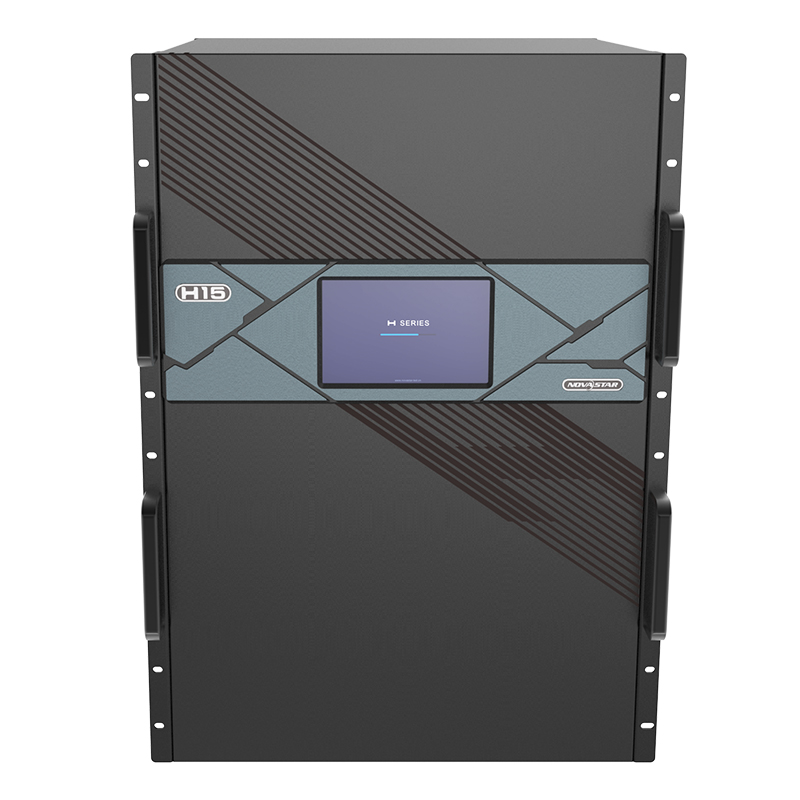

H15 PRO SPLICER MAIN CASE

H15 PRO SPLICER MAIN CASE
H15 PRO SPLICER MAIN CASE
H15 PRO SPLICER MAIN CASE
H15 PRO SPLICER MAIN CASE

The H15 is NovaStar's latest generation of video wall splicers, specifically designed for fine-pitch LED displays. It can operate either as a splicer, integrating both video processing and video control functions, or as a pure splicing processor. The unit is modular and pluggable, allowing flexible configuration and "hot-swapping" of input and output boards. It is suited for various applications due to its excellent features and stable performance.

  • Two types of 4K Sending Cards: H_20xRJ45 (up to 13 million pixels) and H_16xRJ45 (up to 10.4 million pixels, including 2x OPT-Out).
  • Various configurations on a single sending card, such as 4x 2K×1K@60Hz, 2x 4K×1K@60Hz, or 1x 4K×2K@60Hz.
  • Online monitoring for all input and output cards with "Hot-Swap" functionality.
  • Supports up to 100 IP cameras with input mosaic on the IP input card H_2xRJ45.
  • Automatic decryption of HDCP protected sources and multi-screen management capabilities.
  • Web control for easy configuration and monitoring.

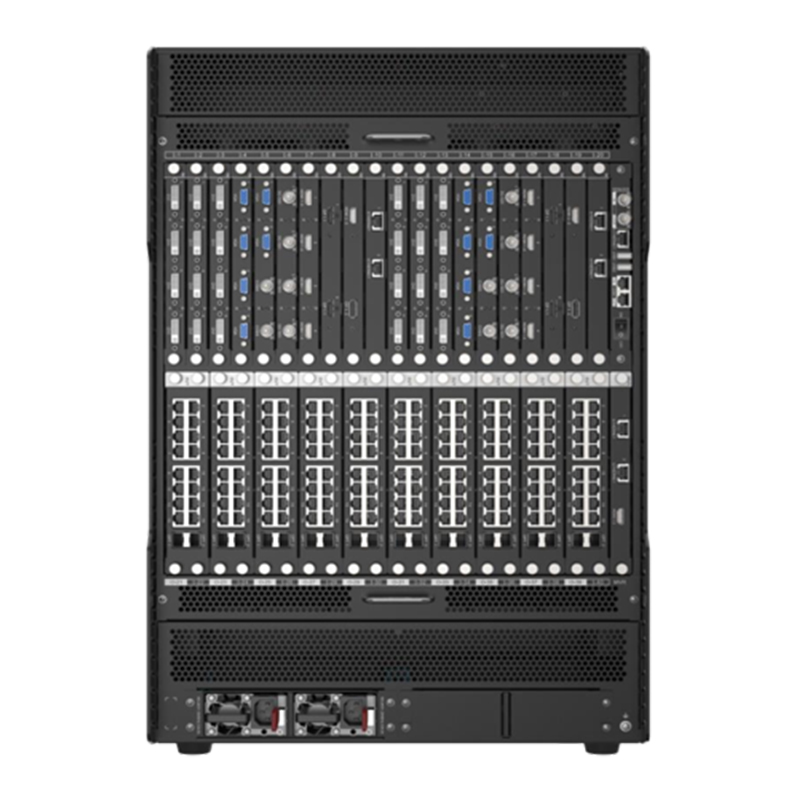

  • Input Cards: Includes options such as H_4×DVI, H_4×HDMI, H_1×HDMI2.0+1×DP1.2, and H_2×HDMI2.0 cards.
  • Output Cards: Includes H_4×DVI, H_4×HDMI, H_1×HDMI2.0, and H_16×RJ45 sending cards.
  • Specialized Cards: H_2xRJ45+1xHDMI1.3 monitoring card and H_16×RJ45+2×Fiber sending cards.

  • Max. Number of input cards: 30
  • Max. Number of input channels: 120
  • Max. Number of output cards: 10
  • Max. Loading Capacity: 65,000,000 Pixels
  • Max. Number of layers: 160
  • Supply Voltage: AC 100-240V, 50/60Hz
  • Power Consumption: 450W
  • Dimensions: 482.6 x 533 x 405.8mm (WxDxH)
  • Weight: 35kg

ATTENTION: This item is an enclosure only. All input/output cards must be ordered separately.
