H20 SPLICER MAIN CASE

H20 SPLICER MAIN CASE
H20 SPLICER MAIN CASE
H20 SPLICER MAIN CASE
H20 SPLICER MAIN CASE
H20 SPLICER MAIN CASE

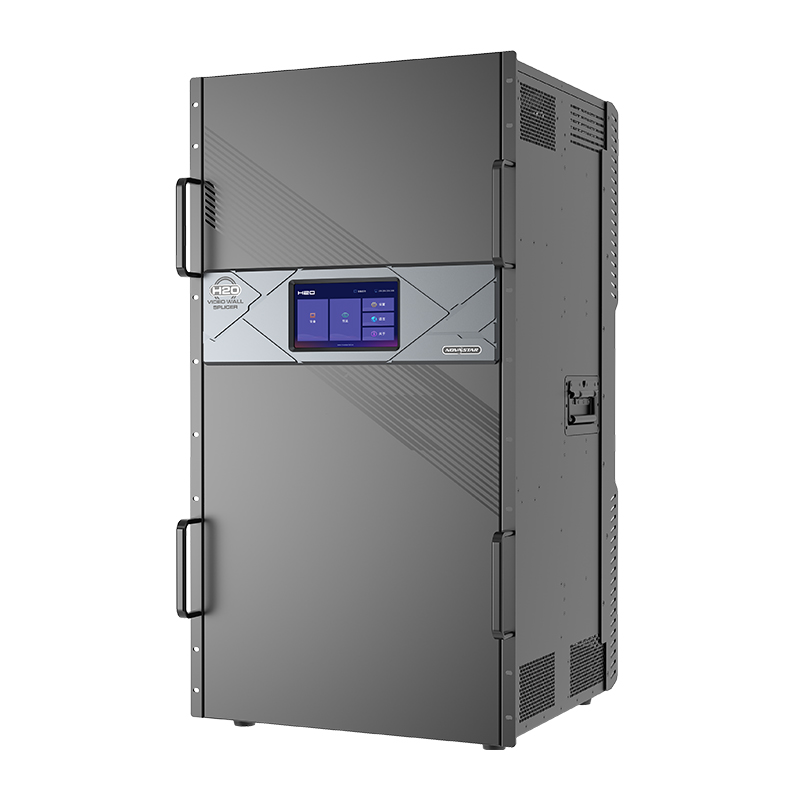

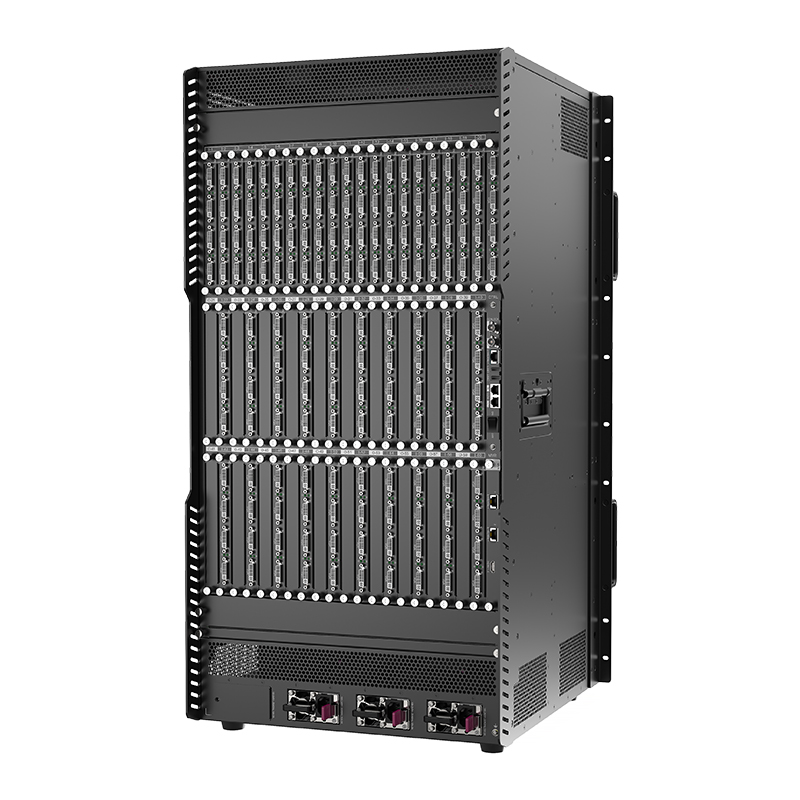

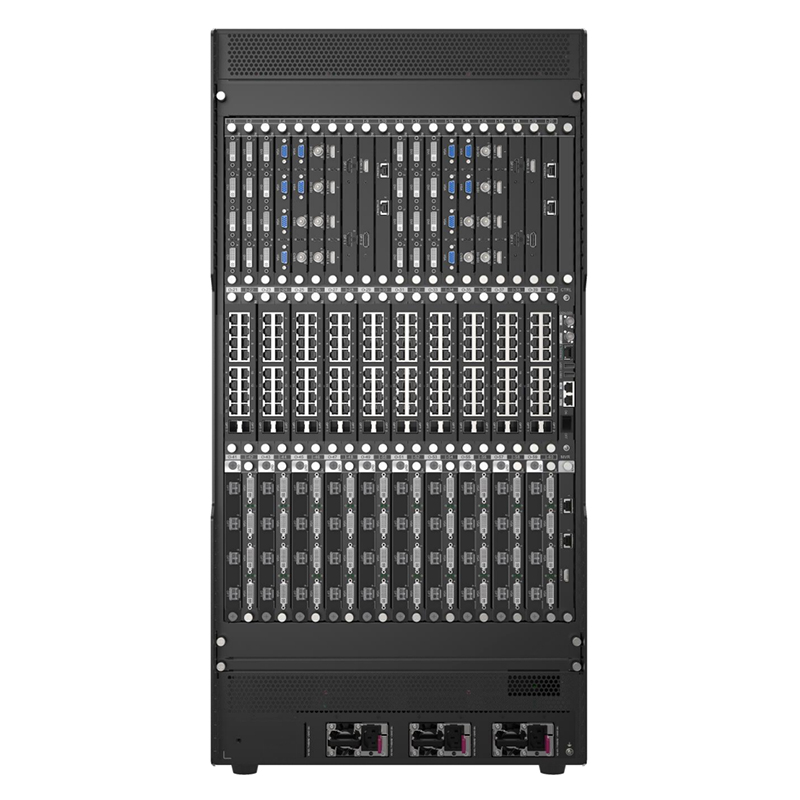

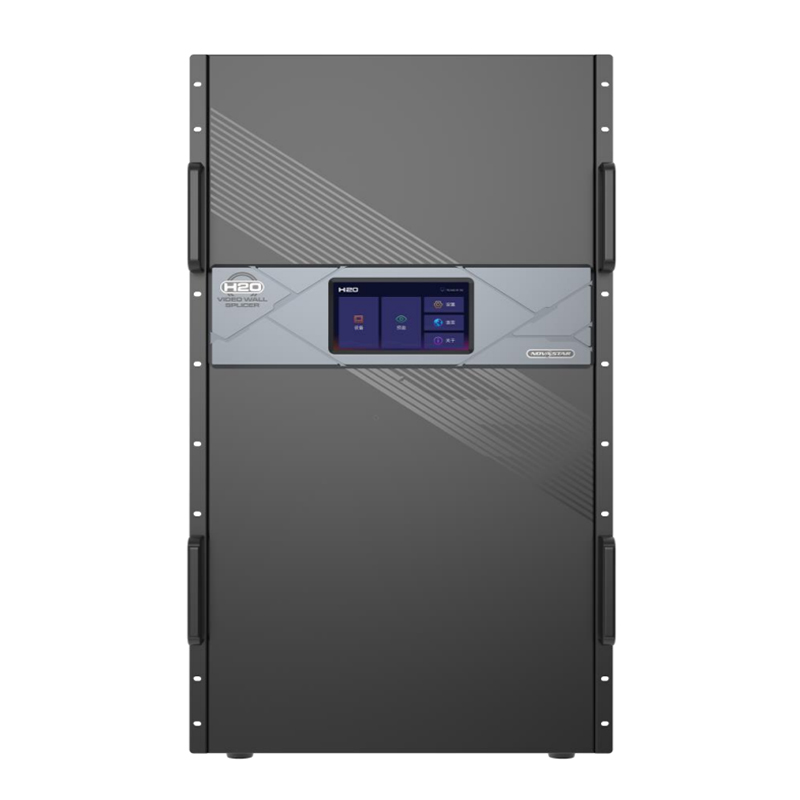

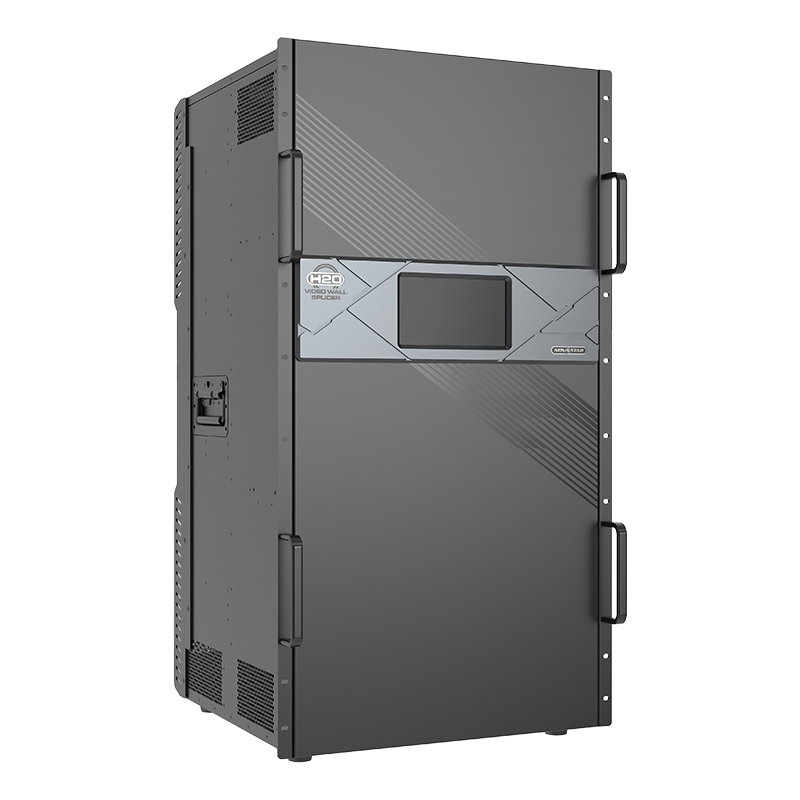

The H20 is part of NovaStar's latest generation of video wall splicers, designed for fine-pitch LED displays, offering excellent image quality. It can function as both a splicer, integrating video processing and control, or as a dedicated splicing processor. The unit is modular and pluggable, offering flexible configuration with hot-swapping capabilities for input and output cards. Thanks to its impressive features and stable performance, the H20 is ideal for a variety of applications.

  • Three Types of 4K Sending Cards:
    • H_20xRJ45: Up to 13 million pixels
    • H_16xRJ45: Up to 10.4 million pixels (including 2x OPT-Out)
    • H_4xSFP+: Up to 20.8 million pixels
  • Different Configurations Possible on One Sending Card:
    • 4x 2K×1K@60Hz
    • 2x 4K×1K@60Hz
    • 2x 4K×2K@60Hz
    • 1x 4K×2K@60Hz
  • Online monitoring for all input & output cards
  • "Hot-Swap" function for all input & output cards
  • IP input card H_2xRJ45 supports up to 100 IP cameras with input mosaic
  • Automatic decryption of HDCP protected sources
  • Multi-screen management and web control

  • Max. Number of Input Cards: 40
  • Max. Number of Output Cards: 20
  • Max. Number of Input Channels: 160
  • Max. Loading Capacity: 460,000,000 pixels
  • Max. Number of Layers: 160
  • Supply Voltage: AC 100-240V, 50/60HZ (The device comes with three power supplies, and an optional backup power supply can be installed)
  • Power Consumption: 1800W
  • Dimensions: 482.6 x 905.2 x 533.0mm (WxDxH)
  • Weight: 61.8kg

Attention: This item is an enclosure only. All input/output cards must be ordered separately.
