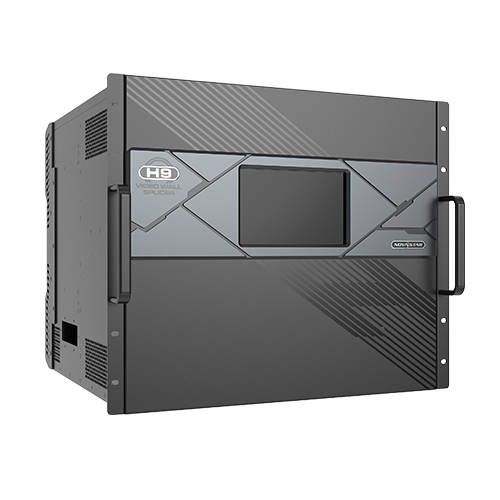

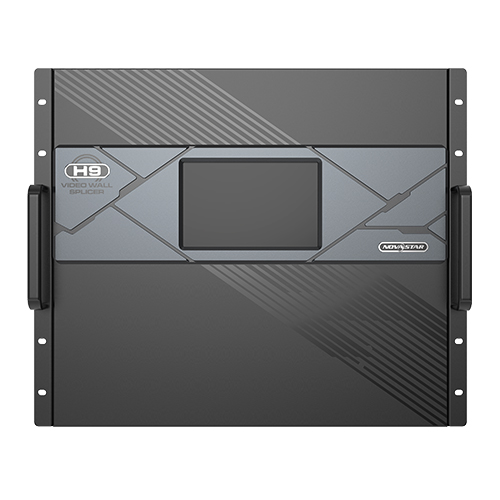

H9 PRO SPLICER MAIN CASE

The H9 is part of NovaStar's latest generation of video wall splicers, which feature outstanding image quality and are specifically designed for fine-pitch LED displays. The H9 can operate either as a splicer, integrating both video processing and video control functions, or as a pure splicing processor. The entire unit is modular and pluggable, allowing flexible configuration, as well as "hot-swapping" of input and output boards. Thanks to its excellent features and stable performance, the H9 can be used in a wide range of applications.

Two Types of 4K Sending Cards:
- H_20xRJ45: Manages up to 13 million pixels
- H_16xRJ45: Manages up to 10.4 million pixels (including 2x OPT-Out)
Different Configurations Possible on One Sending Card:
- 4x 2K×1K@60Hz
- 2x 4K×1K@60Hz
- 1x 4K×2K@60Hz

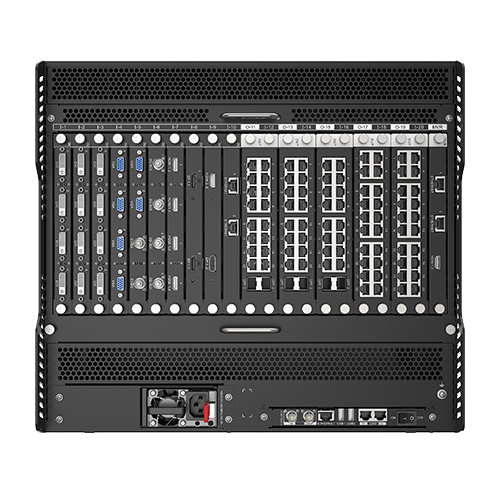

Online monitoring for all input & output cards
"Hot-Swap" function for all input & output cards
IP input card H_2xRJ45 supports up to 100 IP cameras with input mosaic
Automatic decryption of HDCP protected sources
Multi-screen management and web control

Max. Number of Input Cards: 15
Max. Number of Input Channels: 60
Max. Number of Output Cards: 5
Max. Loading Capacity: 65,000,000 pixels
Max. Number of Layers: 80
Supply Voltage: AC 100-240V, 50/60Hz
Power Consumption: 450W
Dimensions: 482.6 x 533 x 405.8mm (WxDxH)
Weight: 35kg

ATTENTION: This item is an enclosure only. All input/output cards must be ordered separately.
