NOVASTAR C1 CONTROL CONSOLE SYSTEM

NOVASTAR C1 CONTROL CONSOLE SYSTEM
NOVASTAR C1 CONTROL CONSOLE SYSTEM
NOVASTAR C1 CONTROL CONSOLE SYSTEM
NOVASTAR C1 CONTROL CONSOLE SYSTEM
NOVASTAR C1 CONTROL CONSOLE SYSTEM

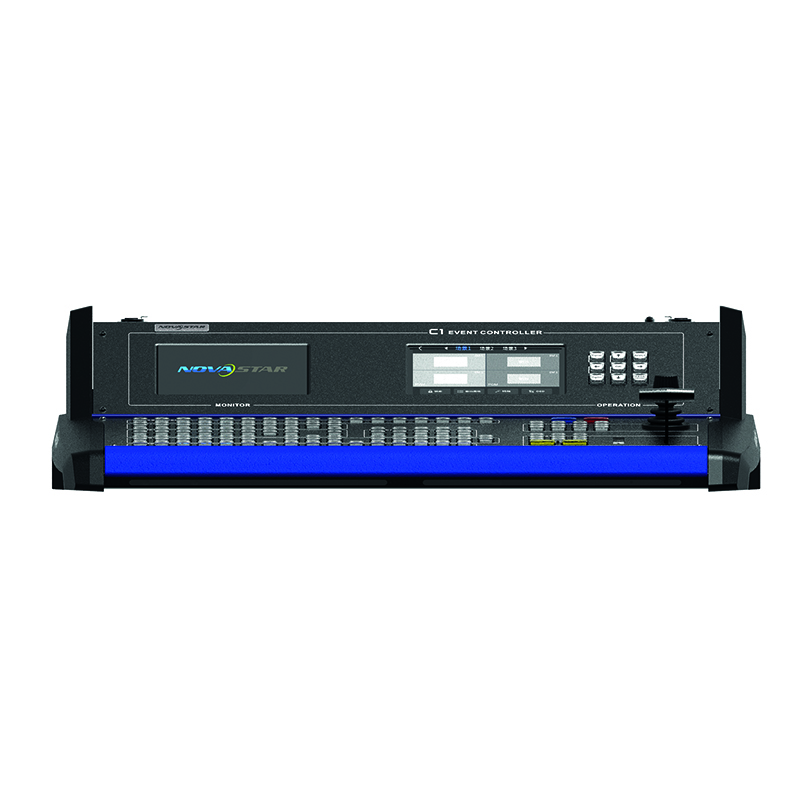

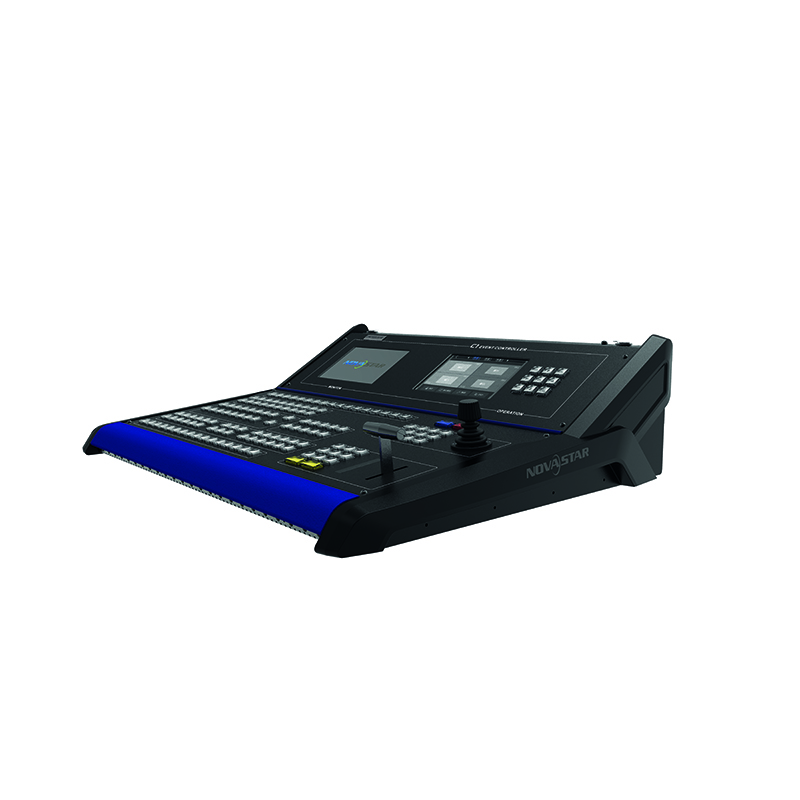

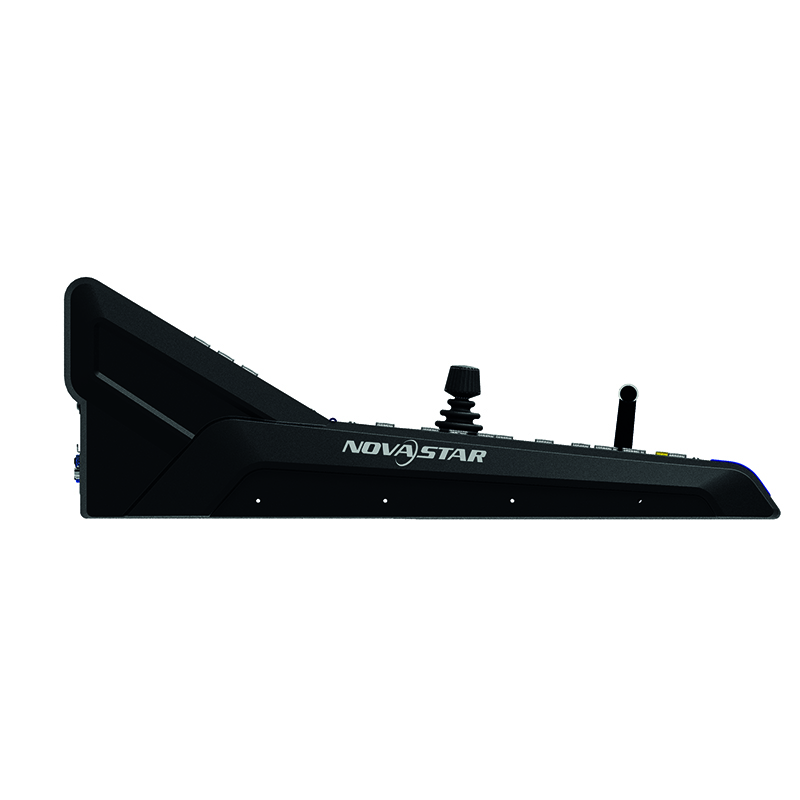

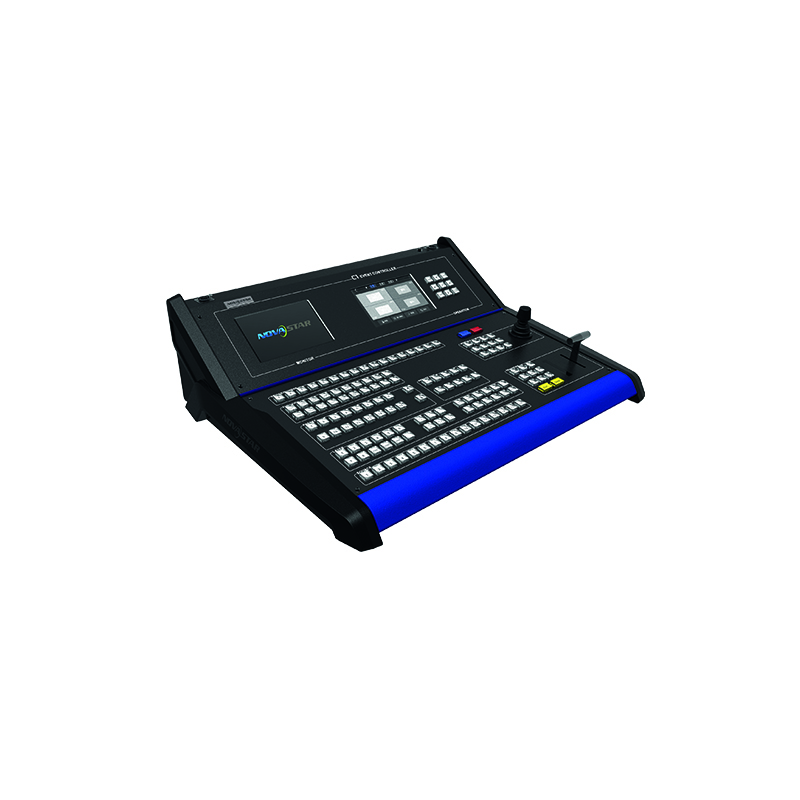

The C1 Video Control Console is specially designed for controlling Novastar’s terminal video processing products, such as the J series, and is primarily used for live stage control. The console features dual LCD screens for efficient operation and monitoring, equipped with a joystick, T-Bar, and lighted buttons for easy handling of video sources during live events.

  • Two LCD screens: One for monitoring input sources, and the other for touch-based operation and control.
  • Easy-to-use with cool lighted buttons, a highly sensitive joystick, and a T-Bar for seamless operation during live events.
  • Control of NovaStar video splicing processors and various visual settings like screen mosaics, image quality adjustment, BKG settings, EDID settings, and switching to blackout with a single button press.
  • Supports up to 32 presets with options for preset copying, template use, customization, and preset data management (including cleanup and locking areas).
  • Handles up to 8 layers and 1 BKG with support for layer shaping, editing, transitions, and more.
  • Provides 13 transition effects and adjustable durations for smooth video switching.
  • Advanced joystick functionality for layer adjustments, including layer position, size, and sensitivity, and support for fade transition effects via the T-Bar.
  • Remote or live control via RJ45 network port for terminal video processors.

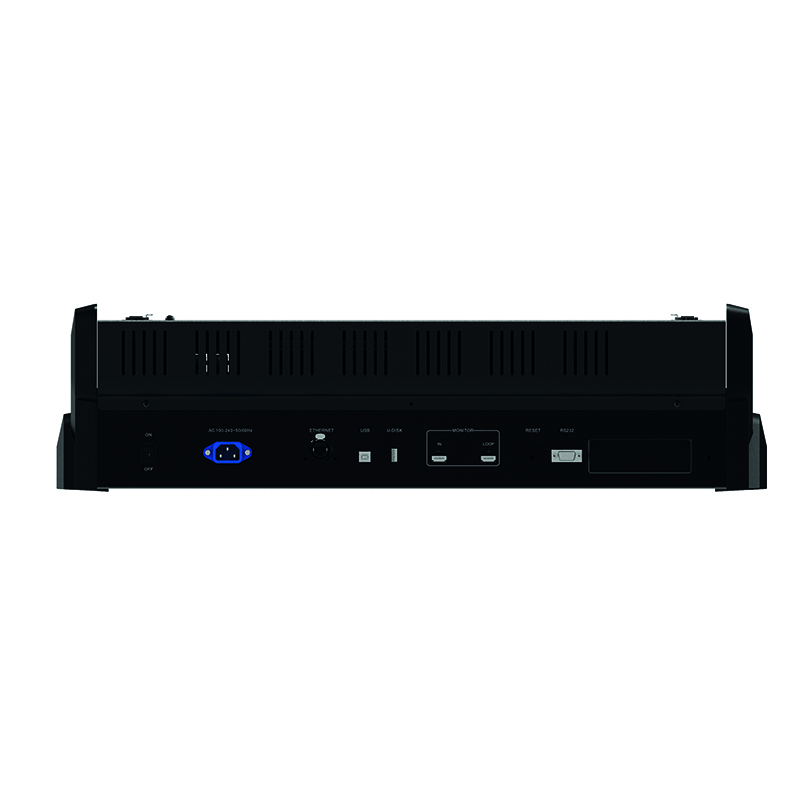

  • Ethernet (RJ45): 1 port for remote control via network.
  • USB: 1 port for program updates or connecting to the upper computer.
  • U-DISK: 1 port for importing files from a USB drive.
  • Monitor: 1 HDMI preview connector for connecting to the terminal's HDMI preview; 1 HDMI loop output for displaying terminal previews on other devices.
  • RS232: 1 control connector for connecting to the upper computer.
  • Reset Button: 1 pinhole reset button to reset and restart the C1.

  • Input Power: AC 100~240V, 50/60Hz
  • Power Consumption: 50W
  • Operating Temperature: 0°C–50°C
  • Storage Temperature: -20°C–60°C
  • Humidity: 0%–95% RH
  • Dimensions: 541.46 mm × 649.90 mm × 204.46 mm
  • Weight: 14 kg
