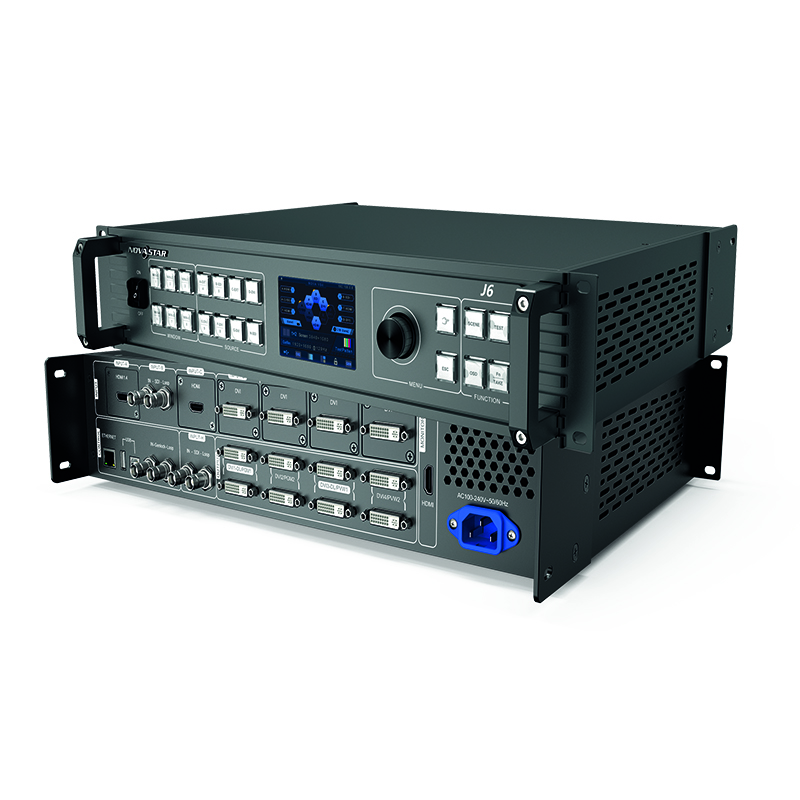

NOVASTAR J6 SEAMLESS SWITCHER

• Powerful Video Processing: Supports up to 8 inputs with resolutions up to 4K×2K@30Hz and 6 windows.
• Dual System Modes: Splicer mode with up to 8K capacity and Switcher mode with up to 4K capacity per unit.
• FPGA Platform: Enables EDID management, color adjustment, seamless transitions, and advanced effects.
• Rich Control Options: Operable via V-Can software, C1 event controller, or front panel.
• Flexible Outputs: 4 groups of DVI connectors for mosaic output with a maximum width of 15360 pixels.

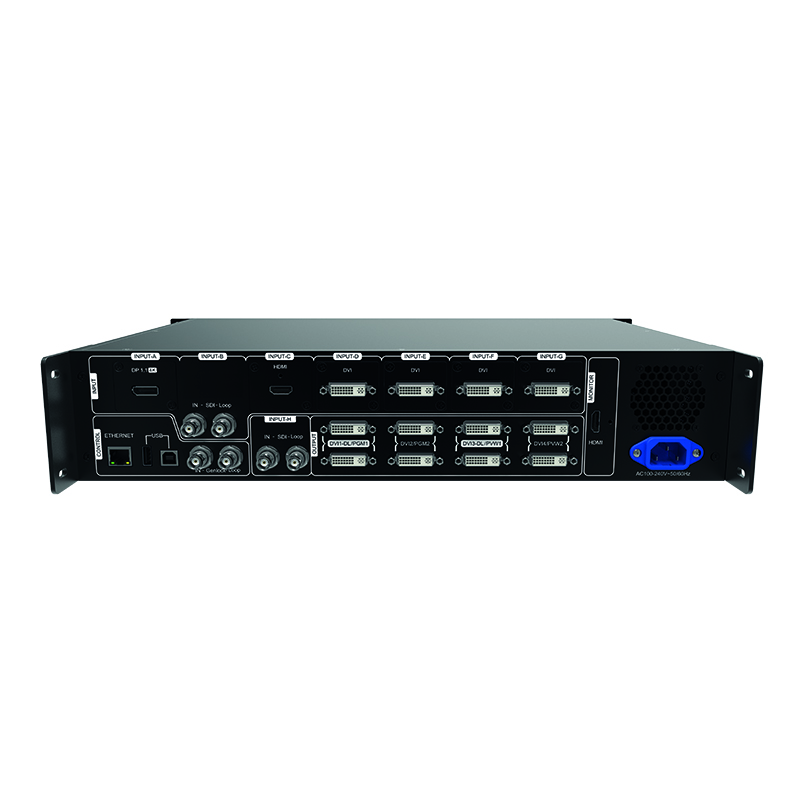

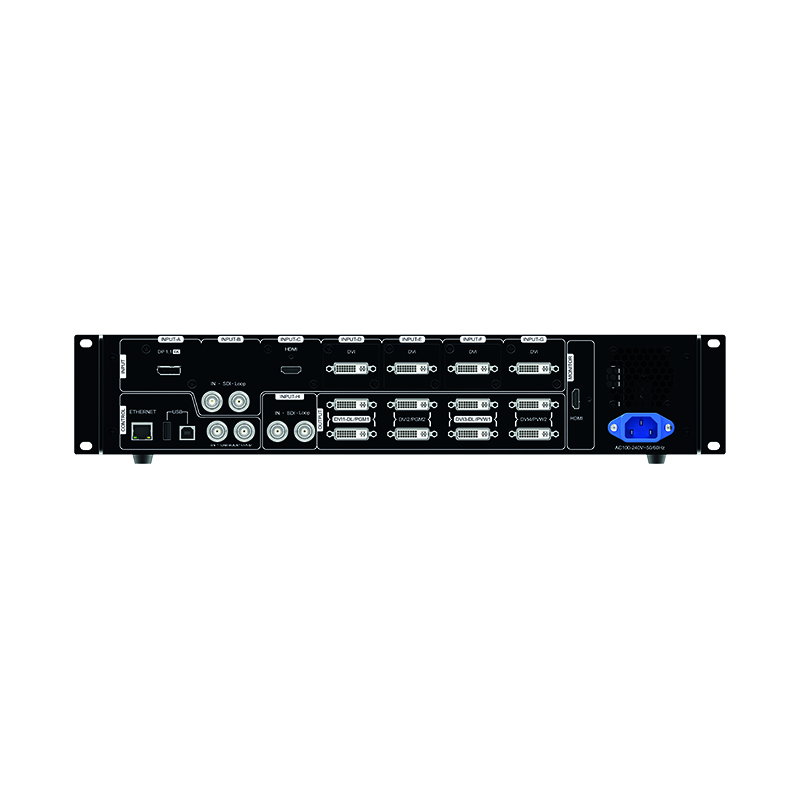

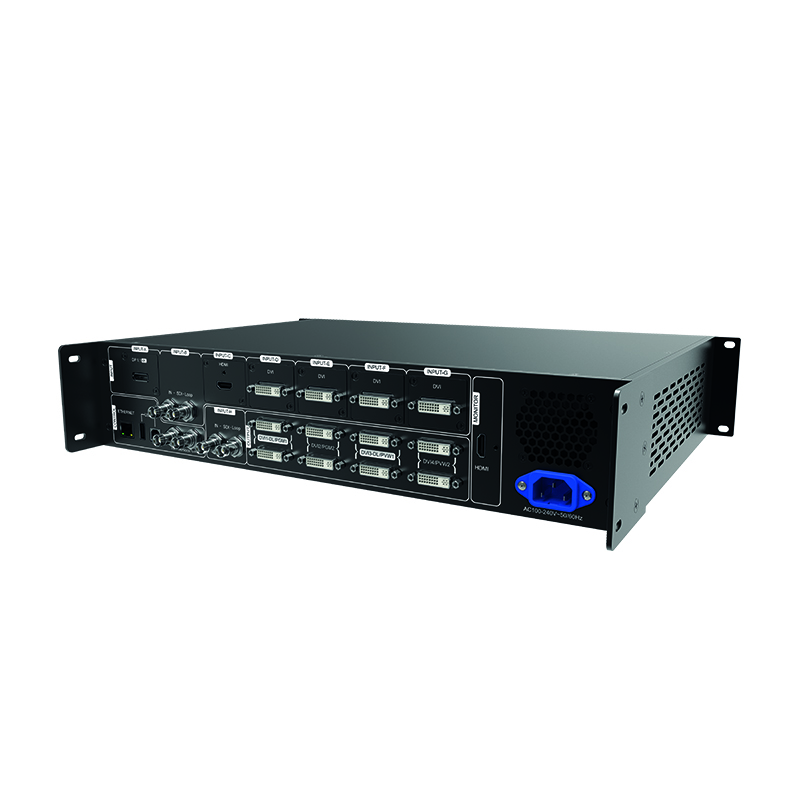

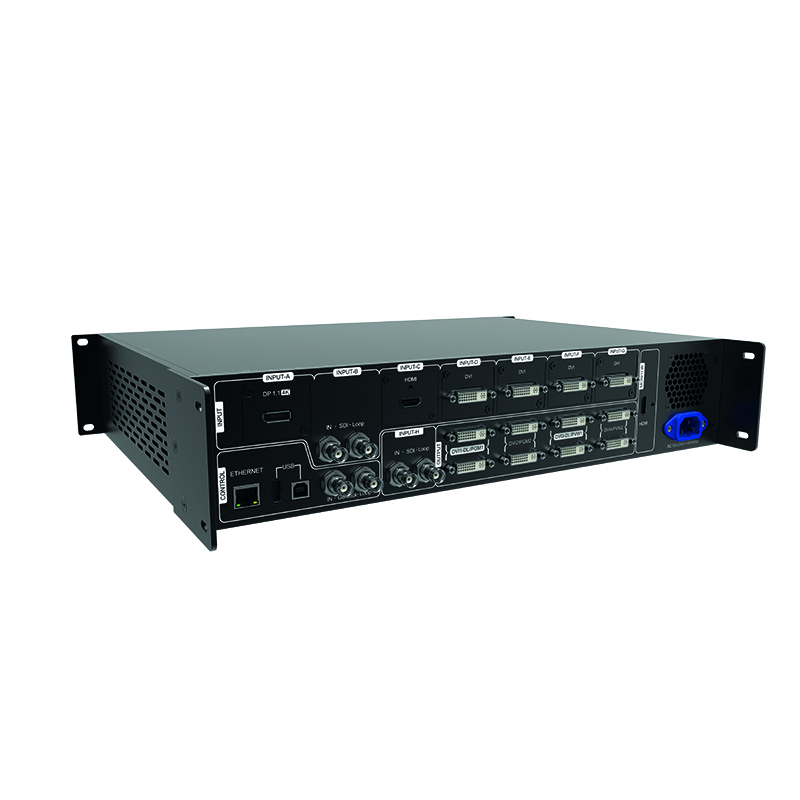

Input Connectors:

• DVI: Resolutions up to 1920×1200@60Hz.
• 3G-SDI: Resolutions up to 1920×1080@60Hz.
• HDMI 1.3: Resolutions up to 1920×1080@60Hz.
• DP 1.1: Resolutions up to 4K×2K@30Hz.
• HDMI 1.4: Resolutions up to 4K×2K@30Hz.

Output Connectors:

• DVI: 4 groups for mosaic output, with main and backup connectors.
• HDMI: Monitoring connector for input sources, PVW, and PGM.

• Multiple Window Display: Supports up to 6 windows with random layouts.
• Transition Effects: Seamless transitions, fades, and customizable effects.
• BKG Capturing: Allows capturing input sources or PGM for use as background.
• Preset Management: Create and save up to 10 custom presets.
• Window Templates: Built-in templates for quick layouts.

• Power: AC 100V–240V, 50/60Hz, with 50W power consumption.
• Operating Environment: Temperature: 0°C–60°C, Storage: -20°C–60°C.
• Dimensions: 482.6mm × 379.5mm × 94.7mm
• Weight: 3.81kg
