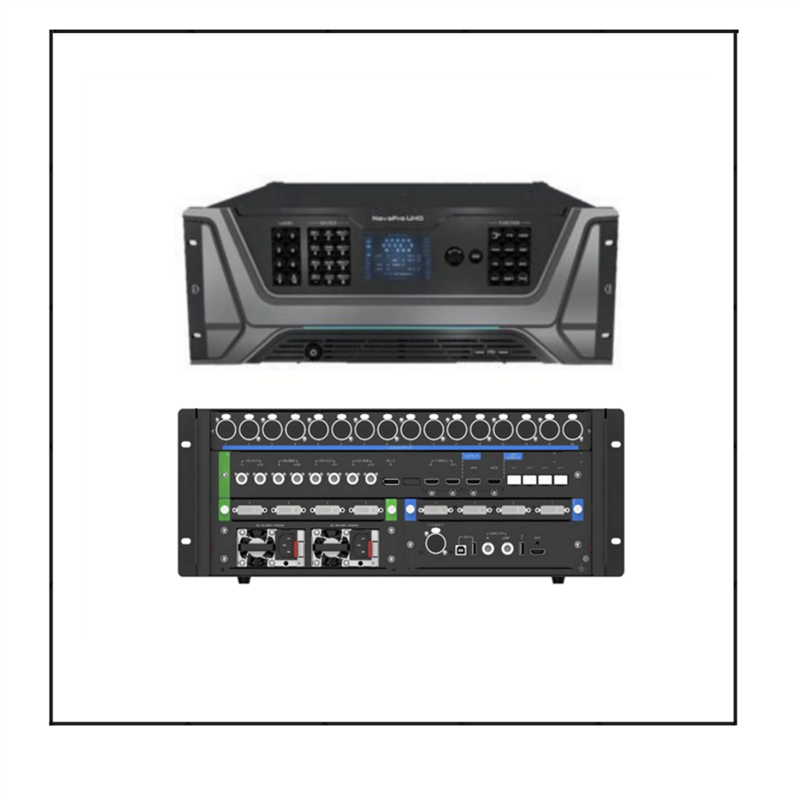

NOVASTAR NOVA PRO UHD

NOVASTAR NOVA PRO UHD

The NovaPro UHD is a new all-in-one video controller developed by Novastar, integrating video processing, video control, and LED screen configuration into one unit. This controller can receive a variety of video signals and process them for ultra-high-definition outputs, supporting resolutions up to 4K×2K@60Hz. With the added functions of video rotation and transition effects, the NovaPro UHD is ideal for high-end rental applications, stage control systems, and fine-pitch LED displays.

Professional Video Processing:

  • Supports ultra HD video resolutions up to 4K×2K@60Hz.
  • Advanced video rotation processing and transition effects for enhanced visual appeal.
  • Supports HDR functionality for smoother and more refined images.
  • 10-bit processing for superior image quality.

Smart Platform and Control:

  • Equipped with the Master VI smart platform for easy configuration and management.
  • Allows layer creation, property settings, and screen configuration via mouse, keyboard, and monitor.
  • Supports quick and advanced screen configurations for various display setups.
  • Remote data transmission via Gigabit Ethernet port or fiber optical connectors.

Input Connectors:

  • 4 × 12G-SDI connectors with loop output functions.
  • 1 × HDMI 2.0 with loop output function.
  • 1 × DP 1.2 (DisplayPort).
  • 1 × USB playback port for program storage and playback.
  • 1 × Replaceable input card with four connectors (SDI, DVI, HDMI, or VGA).

Output Connectors:

  • 16 × Neutrik Ethernet outputs.
  • 4 × 10G fiber optical outputs with copy and hot backup modes.
  • Supports multi-viewer monitoring, including PVW, PGM, or mixed preview.

  • Supports up to 8 layers with flexible properties and priority adjustments.
  • Each layer can be scaled, adjusted for transparency, and customized with dynamic/static images and text.
  • OSD (On-Screen Display) for 4K×2K content, including cropping and transparency adjustment.
  • Supports irregular layers, watermark layers, and overlapping layers.
  • Layer priority adjustment using Z-order for complex visual compositions.

  • Supports sending processed video to LED displays via Neutrik Ethernet port or fiber optical connectors.
  • Low-latency performance from input to output, ensuring smooth video playback.
  • External 3D emitter support for 3D display functionality.
  • Playback of stored programs via USB drive for convenience in live settings.

  • High-end rental applications for events and exhibitions.
  • Stage control systems for live performances and presentations.
  • Fine-pitch LED displays for premium visual displays in various industries.

  • Resolution Support: 4K×2K@60Hz.
  • Input Resolution: Up to 4K@60Hz.
  • Output: Neutrik Ethernet, 10G fiber optical outputs, USB playback.
  • Layer Support: 8 layers, customizable scaling, transparency, and priority adjustments.
  • Latency: Low latency processing for seamless output.
