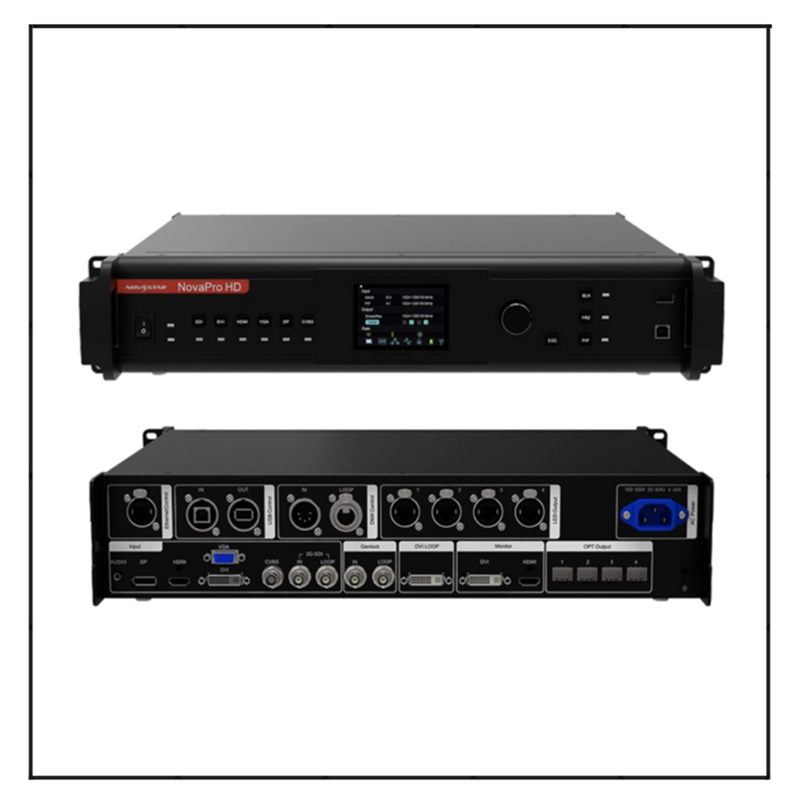

NOVASTAR NOVAPRO HD

NOVASTAR NOVAPRO HD

The NovaPro HD is a professional LED display controller that integrates front-end processing, eliminating the need for an external scaler. It combines advanced features, such as high-quality video processing and multiple input/output interfaces, with the ability to seamlessly control and configure the LED screen. This all-in-one solution is ideal for professional broadcast applications, providing excellent image quality and control.

Professional Interfaces:

  • Supports a wide range of inputs including CVBS, VGA, SDI, DVI, HDMI, DP, and NovaStar HDR.
  • Input resolution up to 1080p@60Hz, with a pixel clock of 165MHz and output bandwidth of up to 4Gbps.

Image Processing:

  • Advanced de-interlacing and motion-adaptive processing for clear, high-quality images.
  • Supports up to 12-bit grayscale depth with HDMI inputs for detailed image rendering.

Input Configuration:

  • Each input can be individually configured for contrast, brightness, hue, saturation, and RGB gain.
  • Scaling of inputs to fit the LED display resolution is fully supported.

Easy System Configuration:

  • No computer software is required for configuration; use the Touch Track system with a single wheel and button to configure the system with ease.
  • Remote configuration via PC (Windows, Mac, Linux), tablet, or smartphone, with real-time previews.

Synchronization and Control:

  • Features DMX512 and GenLock interfaces for professional control and synchronization.
  • Optical fiber outputs support long-distance data transmission.

Input Ports:

  • 1x CVBS (PAL/NTSC)
  • 1x VGA (VESA standard)
  • 1x DVI (VESA standard, supports 1080i input, HDCP)
  • 1x HDMI (EIA/CEA-861 standard, HDMI-1.3, HDCP supported)
  • 1x DP (VESA standard)
  • 1x 3G-SDI (480i, 576i, 720p, 1080i/p 3G SDI)

Output Ports:

  • 1x DVI input looping out (DVILOOP) - matches the DVI input, no HDCP support for looping
  • 2x DVI outputs with resolutions up to 2560×816/60Hz, user-defined resolutions supported
  • 1x HDMI output
  • 1x SDI input looping out (SDILOOP) - supports 480i, 576i, 720p, 1080i/p (3G SDI)

  • Input Power: 85-265VAC, 50/60Hz, 0.65A
  • Overall Power Consumption: 30W
  • Operating Temperature: -20°C to 60°C

  • Broadcast Industry and Professional LED Displays
  • Stage and Event Control Systems
  • Exhibitions, Conferences, and High-End Rental Applications
